How to use the diver adjuster

If your watch’s metallic band has the Diver Adjuster function, the length of the band can be easily adjusted.
It is very useful when you wear the watch over a wet suit or winter clothing.

For a Three-fold clasp with a secure lock, Part Num1

How to use Diver adjuster-0-1 + How to use Diver adjuster-0-1

Flap

Clasp

Push button for detaching

How to use Diver adjuster-0-2 + How to use Diver adjuster-0-2

Slider

When extended

  1. Lift up the flap approximately 90°until it stands upright, and then press the flap down further approximately 20°and lightly hold it.

    2. When doing so, take care not to push the flap forcibly. Although you may feel slight resistance, doing this requires only a light force.

    Diver Adjuster-1 + How to use Diver adjuster-1

    Flap

    20°

    90°

  2. Lightly pull the band on the 6 o’clock side of the watch along the curved line of the band to pull out the slider.

    3. Doing this requires only a light force. Take care not to pull the band forcibly.

    The slider can be pulled out approximately 30 mm. Take care not to pull it out more than this limit.

    Diver Adjuster-2 + How to use Diver adjuster-2

    Band on the 6 o’clock side of the watch

  3. While pressing the push button, lift up the clasp to release the buckle, and place the watch on your wrist.

    4. Diver Adjuster-3 + How to use Diver adjuster-3

    Clasp

    Push button

  4. Close the clasp (4-1) first and then, the flap (4-2).

    5. Diver Adjuster-4 + How to use Diver adjuster-4

    Flap
    (4-2)

    Clasp
    (4-1)

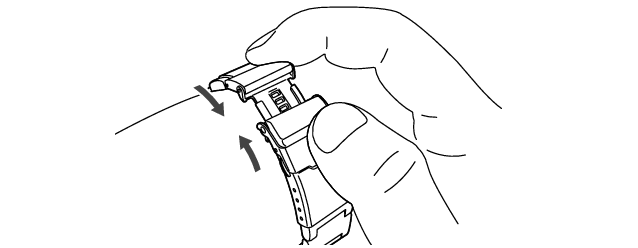

  5. Hold both sides of the band to adjust the length of the slider until it fits snugly around your wrist.

    6. Diver Adjuster-5

For a Three-fold clasp with a secure lock, Part Num2

Diver Adjuster (New)-1 + Diver Adjuster (New)-4

Flap

Clasp

Push button for detaching

Push button for adjusting

Slider

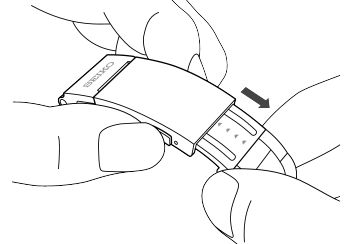

  1. Hold the band and pull the band at 12 o’clock while pressing the push button for adjusting.

    2. The slider can be pulled out approximately 15mm. Do not pull it out more than this limit.

    Diver Adjuster (New)-2

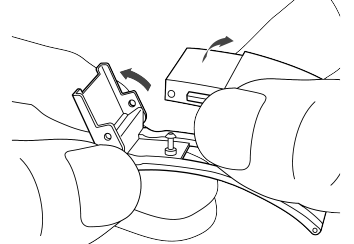

  2. Lift up the flap, and while pressing the push button for attaching and detaching, lift up the clasp to release the buckle, and place the watch on your wrist.

    3. Diver Adjuster (New)-3

  3. Close the clasp (3-1) first and then, the flap (3-2).

    4. Diver Adjuster (New)-4 + Diver Adjuster (New)-4

    Flap
    (3-2)

    Clasp
    (3-1)

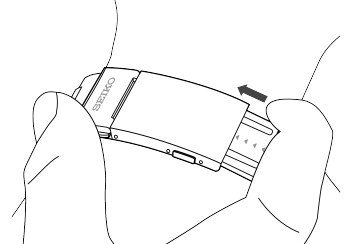

  4. Hold both sides of the clasp to slowly adjust the length of the slider until it fits snugly around your wrist.

    5. Adjustment is possible without pressing the push button for adjusting.

    Procedures 1 and 4 can be performed while wearing the watch on the wrist.

    Diver Adjuster (New)-5

For a three-fold clasp without a secure lock

Front
Diver Adjuster (No-lock)-2-1 + How to use Diver adjuster(No-lock)2-1 + How to use Diver adjuster(No-lock)2-1

Clasp

Push button for detaching

Back
Diver Adjuster (No-lock)-2-2 + How to use Diver adjuster(No-lock)2-2

Slide button for adjusting

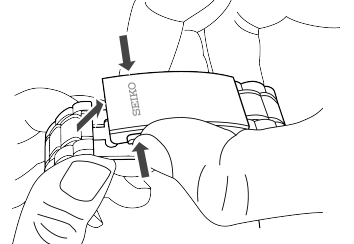

  1. While pressing the push button for attaching and detaching, lift up the clasp to release the buckle

    2. Diver Adjuster (No-lock)-3

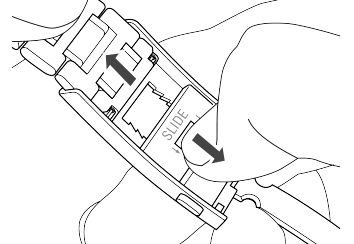

  2. Hold the band and pull the band at 12 o’clock while sliding the slide button for adjusting located on the back of the buckle in the direction of the arrow

    3. The band can be pulled out approximately 16 mm. Do not pull it out more than this limit.

    Diver Adjuster (No-lock)-2

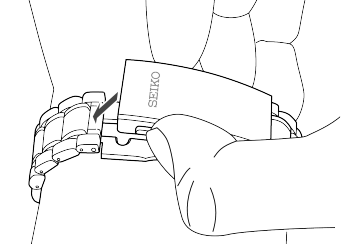

  3. Place the band on your wrist and close the clasp

    4. Diver Adjuster (No-lock)-4

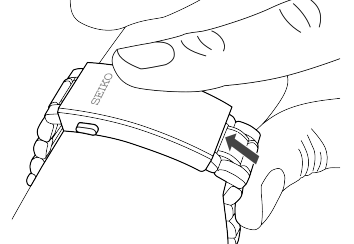

  4. Hold the clasp and the band at the 12 o’clock position, and slowly adjust the length of the slider until it fits snugly around your wrist.

    5. Adjustment is possible without pressing the slide button for adjusting even when the band is wrapped around your wrist.

    Diver Adjuster (No-lock)-5
